M700SH


The Hilliard M700SH brake caliper is a spring applied, hydraulically released brake for use in heavy duty industrial applications. The brake comes standard with marine grade epoxy paint suitable for extreme environments. It is available with standard force ratings which, when paired with the correct disc size, produces an exact braking torque for the application.

The caliper features "maintenance mode", which removes all stored spring energy within the cylinder assembly. This allows for brake pad replacement, monitor unit adjustment and seal replacement without the need to remove the brake from service. Engineered fasteners eliminate the need for special tools such as torque multipliers or hydraulic tensioners.

Applications

Conveyors - Cranes - Material Handling - Mining - Winches

Type: Spring Applied / Hydraulic Released

Documents

Hilliard Brake M700SH (Technical Data Sheet)

Renderings

M700SH M700SH
Register / Login to view renderings

A400-T400 AS Caliper Brake


The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24" and is off ered in 2 sizes to accommodate a 1" and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The AS thruster is a direct applied thruster that is pneumatically applied spring released. The Pneumatic applied thrusters are offered in multiple sizes to meet the needs of our customers. The T400 AS thruster produces a maximum braking force of 8400 pounds at the maximum operating pressure of 67 psi. (This
thruster is only to be used on the A400 caliper)

Applications

Marine/Shipping - Material Handling - Pulp & Paper - Winches

Type: Pneumatic Applied / Spring Released

Documents

A400-T400 AS Caliper Brake (Technical Data Sheet)

Renderings

A400-T400 AS Caliper Brake A400-T400 AS Caliper Brake
Register / Login to view renderings

A400-T400 HS Caliper Brake


The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24" and is offered in 2 sizes to accommodate a 1" and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left-handed designs eliminating the need for multiple part numbers.

The HS thruster is a direct applied thruster that is hydraulically applied spring released. The T400 thruster produces a maximum braking force of 8081 pounds at the maximum operating pressure of 1600 psi. (This thruster is only to be used on the A400 caliper)

Applications

Marine/Shipping - Material Handling - Pulp & Paper - Winches

Type: Hydraulic Applied / Spring Released

Documents

A400-T400 HS Caliper Brake (Technical Data Sheet)

Renderings

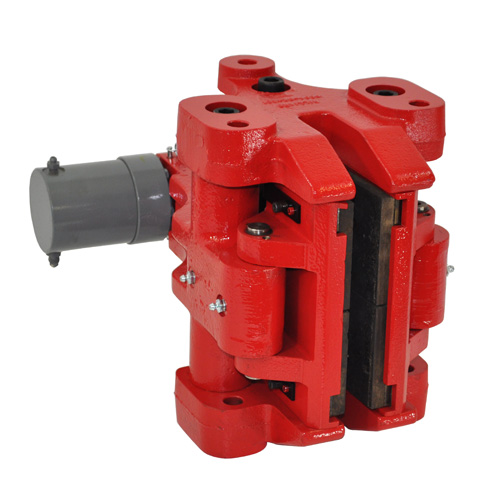

A400-T400 HS Caliper Brake A400-T400 HS Caliper Brake
Register / Login to view renderings

MK-350 Fail Safe Caliper Brake


The Hilliard MK350 is an electromagnetic, fail safe caliper brake. Spring applied, electric released, it is suitable for holding duty and emergency for applications such as conveyors, elevators and cranes. Alternative mounting arrangement: pin mounting, base mounting horizontal and base mounting angle.

The MK350 is capable of producing a maximum 350 LBF of braking force with up to 210 VDC release voltage and 100 VDC holding voltage. Mounted on pins allowing for axial movement, it has an optional manual release mechanism for a momentarily brake release with a standard open-end or socket wrench.

Applications

Amusement / Stage Equipment - Cranes - Lifts/Elevators - Material Handling - Power Generation - Renewable Energy - Steel Industry

Type: Spring Applied / Electric Released



Renderings

MK-350 Fail Safe Caliper Brake Rendering MK-350 Fail Safe Caliper Brake Rendering MK-350 Fail Safe Caliper Brake Rendering MK-350 Fail Safe Caliper Brake Rendering
Register / Login to view renderings

MK-750 Fail Safe Caliper Brake


The Hilliard MK750 is an electromagnetic, fail safe caliper brake. Spring applied, electric released, it is suitable for holding duty and emergency for applications such as conveyors, elevators and cranes. Alternative mounting arrangement: pin mounting, base mounting horizontal and base mounting angle.

The MK750 is capable of producing a maximum 750 LBF of braking force with up to 210 VDC release voltage and 100 VDC holding voltage. Mounted on pins allowing for axial movement, it has an optional manual release mechanism for a momentarily brake release with a standard open-end or socket wrench.

Applications

Amusement / Stage Equipment - Cranes - Lifts/Elevators - Material Handling - Power Generation - Renewable Energy - Steel Industry

Type: Spring Applied / Electric Released



Renderings

MK-750 Fail Safe Caliper Brake Rendering MK-750 Fail Safe Caliper Brake Rendering MK-750 Fail Safe Caliper Brake Rendering MK-750 Fail Safe Caliper Brake Rendering
Register / Login to view renderings

MK-1400 Fail Safe Caliper Brake


The Hilliard MK1400 is an electromagnetic, fail safe caliper brake. Spring applied, electric released, it is suitable for holding duty and emergency for applications such as theatrical stage lifts, elevators and cranes. Alternative mounting arrangement: pin mounting, base mounting horizontal and base mounting angle.

The MK1400 is capable of producing a maximum 1,400 LBF of braking force with up to 210 VDC release voltage and 100 VDC holding voltage. Mounted on pins allowing for axial movement, it has an optional manual release mechanism for a momentarily brake release with a standard open-end or socket wrench.

Applications

Amusement / Stage Equipment - Cranes - Lifts/Elevators - Material Handling - Power Generation - Renewable Energy - Steel Industry

Type: Spring Applied / Electric Released



Renderings

MK-1400 Fail Safe Caliper Brake Rendering MK-1400 Fail Safe Caliper Brake Rendering MK-1400 Fail Safe Caliper Brake Rendering MK-1400 Fail Safe Caliper Brake Rendering MK-1400 Fail Safe Caliper Brake Rendering MK-1400 Fail Safe Caliper Brake Rendering
Register / Login to view renderings

MK-4800 Fail Safe Caliper Brake


The Hilliard MK4800 is an electromagnetic, fail safe caliper brake. Spring applied, electric released, it is suitable for holding duty and emergency for applications such as heavy duty lift operations, conveyors, elevators and cranes. Alternative mounting arrangement: pin mounting, base mounting horizontal and base mounting angle.

The MK4800 is capable of producing a maximum 4,800 LBF of braking force with up to 210 VDC release voltage and 100 VDC holding voltage. Mounted on pins allowing for axial movement, it has an optional manual release mechanism for a momentarily brake release with a standard open-end or socket wrench.

Applications

Amusement / Stage Equipment - Cranes - Lifts/Elevators - Material Handling - Power Generation - Renewable Energy - Steel Industry

Type: Spring Applied / Electric Released



Renderings

MK-4800 Fail Safe Caliper Brake Rendering MK-4800 Fail Safe Caliper Brake Rendering MK-4800 Fail Safe Caliper Brake Rendering MK-4800 Fail Safe Caliper Brake Rendering
Register / Login to view renderings

A300-T300 HS Caliper Brake


The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12" and is offered in 4 sizes to accommodate a ½", 1", 1-3/16", and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left-handed designs eliminating the need for multiple part numbers.

The HS thruster is a direct applied thruster that is hydraulically applied spring released. The T300 HS thruster produces a maximum braking force of 3200 pounds at the maximum operating pressure of 1400 psi. (When used with the A300 Caliper)

Applications

Material Handling - Pulp & Paper - Winches

Type: Hydraulic Applied / Spring Released

Documents

A300-T300 HS Caliper Brake (Technical Data Sheet)

Renderings

A300-T300 HS Caliper Brake A300-T300 HS Caliper Brake
Register / Login to view renderings
